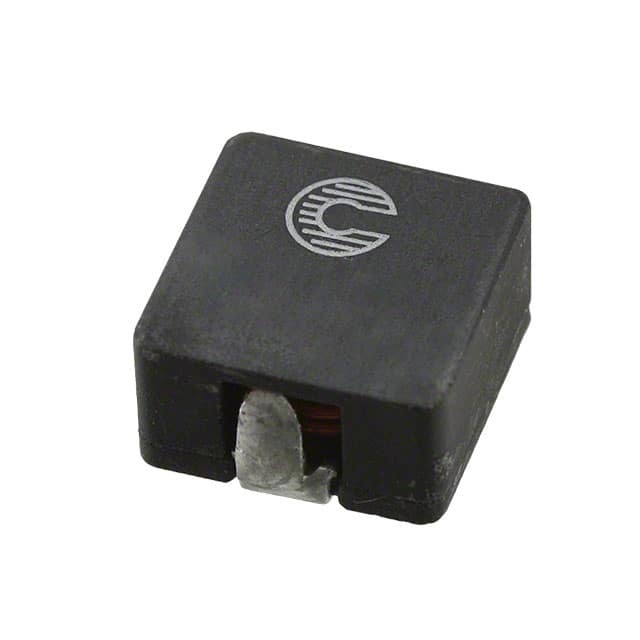

HC9-100-R

SKU: 54496

Manufacturer: Cooper Industries

Inductor Power Wirewound 10.9uH/10uH 15% 100KHz 8.5A 0.014Ohm DCR T/R

3420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Inductance (H)	10.9u(OCL)/10u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	15%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	8.5(Typ)
Maximum Saturation Current (A)	12.5
Maximum DC Resistance (Ohm)	0.014
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	155
Packing Method	Tape and Reel
Length (mm)	14.1
Depth (mm)	13.1
