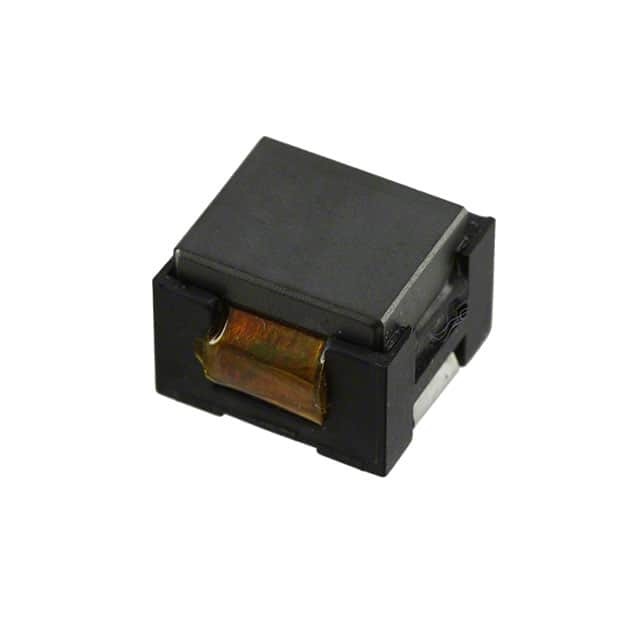

HC1-100-R

SKU: 33062

Manufacturer: Cooper Industries

Inductor Power Wirewound 10.5uH/10uH 15% 300KHz Ferrite 12.79A 0.0057Ohm DCR T/R

17720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	10.5u(OCL)/10u
Tolerance	15%
Inductance Test Frequency (Hz)	300K
Maximum DC Current (A)	12.79
Maximum Saturation Current (A)	5.3
Maximum DC Resistance (Ohm)	0.0057
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	13
Terminal Form	Surface Mount
Depth (mm)	13
