DRA127-150-R

SKU: 39886

Manufacturer: Cooper Industries

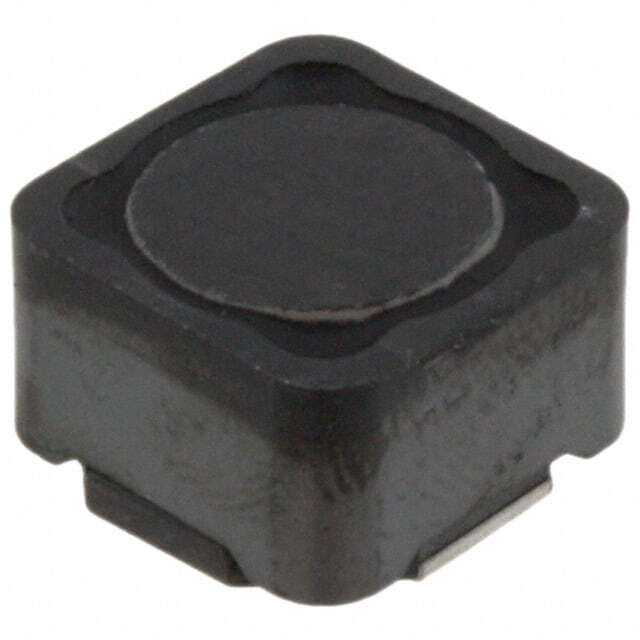

Inductor Power Shielded Drum Core 14.9uH/15uH 20% 100KHz Ferrite 4.83A 0.032Ohm DCR Automotive T/R

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Drum Core
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	14.9u(OCL)/15u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	4.83
Maximum Saturation Current (A)	9.03
Maximum DC Resistance (Ohm)	0.032
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	165
Packing Method	Tape and Reel
Length (mm)	12.5
Terminal Form	Surface Mount
Depth (mm)	12.5
