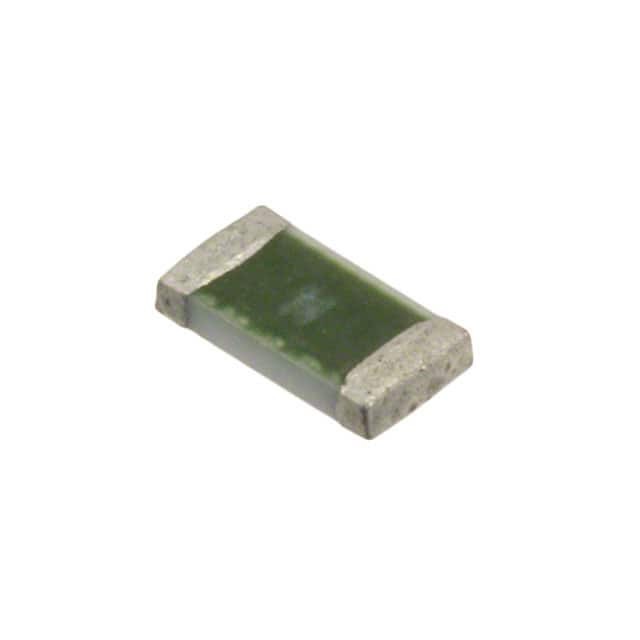

CC12H8A-TR

SKU: 67832

Manufacturer: Cooper Industries

Fuse Chip 8A SMD Solder Pad 1206 T/R Automotive CE/cULus

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Chip
Application	Motor Circuit
Fuse Size (mm)	3.2 X 1.6 X 0.6
Current Rating (A)	8
Voltage Rating (V)	32
Maximum DC Voltage Rating (V)	63
Breaking Capacity @ Rated Voltage (A)	100@32VDC
Typical Melting I2t (A²S)	0.007
Typical Cold Resistance (Ohm)	12
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Depth (mm)	1.6
Length (mm)	3.2
Height (mm)	0.6
Terminal Form	Surface Mount
