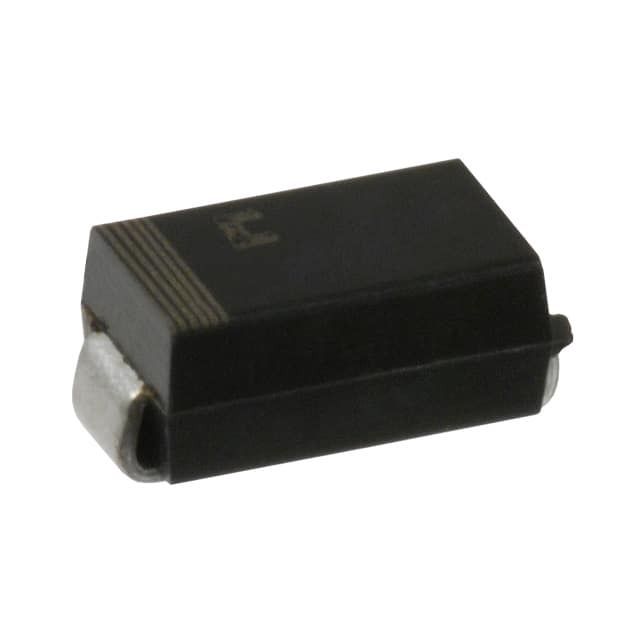

TV04A5V0JB-HF

SKU: 86029

Manufacturer: Comchip Technology

TVS Diode Single Bi-Dir 5V 400W 2-Pin SMA T/R

2870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.70
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6.4
Maximum Clamping Voltage (V)	9.2
Maximum Reverse Stand-Off Voltage (V)	5
Maximum Peak Pulse Current (A)	43.48
Maximum Reverse Leakage Current (uA)	1600
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	400
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Height	2.06(Max)
Package Length	4.55(Max)
Package Width	2.76(Max)
PCB changed	2
