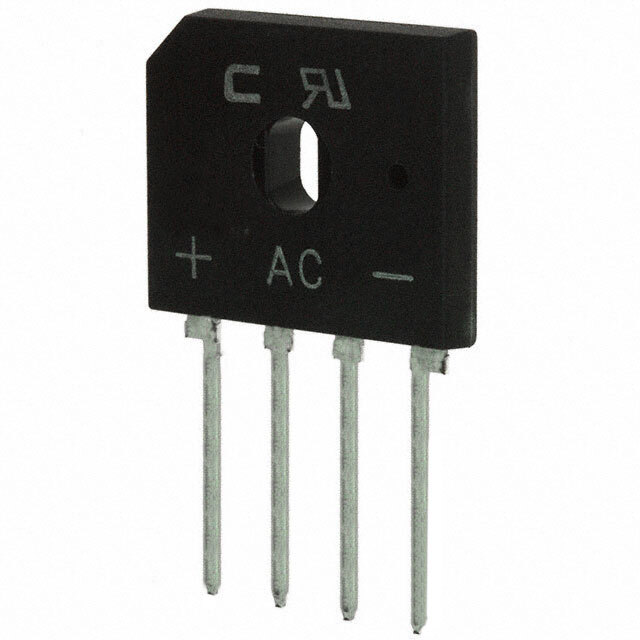

GBU2506-G

SKU: 61497

Manufacturer: Comchip Technology

Rectifier Bridge Diode Single 600V 25A 4-Pin Case GBU Tube

3310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.70
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Peak Average Forward Current (A)	25
Peak RMS Reverse Voltage (V)	420
Peak Non-Repetitive Forward Surge Current (A)	350
Peak Forward Voltage (V)	1@12.5A
Peak Reverse Current (uA)	10
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	Case GBU
Pin Count	4
Standard Package Method	Case GBU
Terminal Form	Through Hole
Package Height	19.1(Max)
Package Length	22.2(Max)
Package Width	3.53(Max)
PCB changed	4
