CZRQR5V6B-HF

SKU: 75008

Manufacturer: Comchip Technology

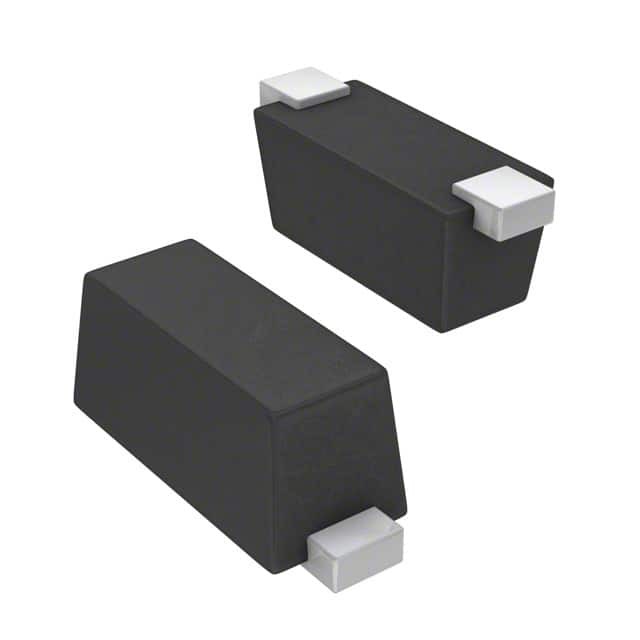

Zener Diode Single 5.6V 2.5% 25Ohm 125mW 2-Pin Case 0402(1006Metric) T/R

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	5.6
Zener Voltage Tolerance	2.5%
Maximum Power Dissipation (mW)	125
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	2
Maximum Zener Impedance (Ohm)	25
Maximum Power Dissipation @ 25C (mW)	125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	Case 0402(1006Metric)
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Length	1.05(Max)
Package Width	0.65(Max)
