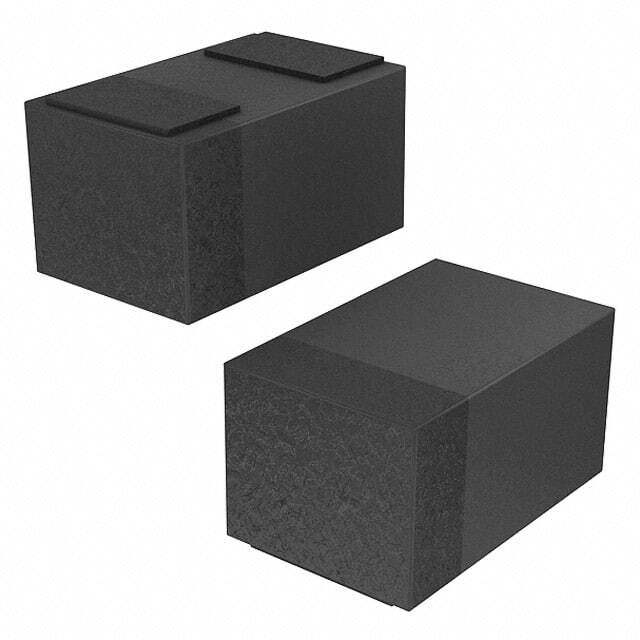

CZRQR52C3V3-HF

SKU: 11320

Manufacturer: Comchip Technology

Zener Diode Single 3.3V 5% 95Ohm 125mW 2-Pin SOD-923F T/R

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.10.00.70
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	3.3
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	125
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	25
Maximum Zener Impedance (Ohm)	95
Maximum Power Dissipation @ 25C (mW)	125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOD-923F
Pin Count	2
Standard Package Method	SOD-923F
Terminal Form	Surface Mount
Package Length	1.05(Max)
Package Width	0.65(Max)
PCB changed	2
