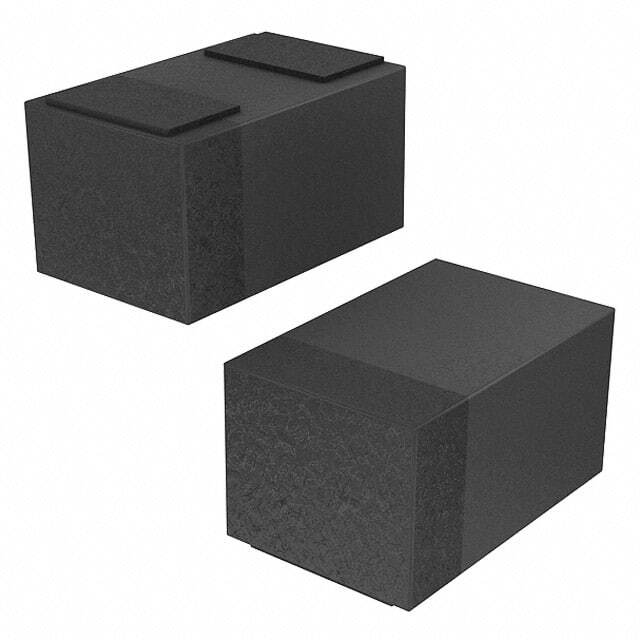

CDSQR4148

SKU: 96023

Manufacturer: Comchip Technology

Rectifier Diode Small Signal Switching 100V 0.15A 4ns 2-Pin Case 0402(1006Metric) T/R

2810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.70
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	75
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	0.15
Peak Non-Repetitive Surge Current (A)	4(Typ)
Peak Forward Voltage (V)	1@0.05A
Peak Reverse Current (uA)	2.5
Maximum Power Dissipation (mW)	125
Peak Reverse Recovery Time (ns)	4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	Case 0402(1006Metric)
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Length	1.05(Max)
Package Width	0.65(Max)
