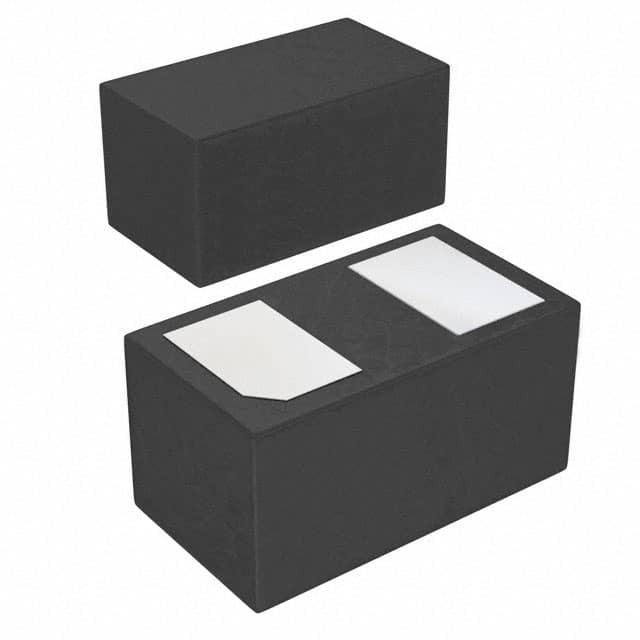

CDBZ0130R-HF

SKU: 124402

Manufacturer: Comchip Technology

Rectifier Diode Small Signal Schottky 0.1A 2-Pin DFN T/R

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.10.00.70
Automotive	No
PPAP	No
Type	Small Signal Schottky Diode
Maximum DC Reverse Voltage (V)	30
Configuration	Single
Maximum Continuous Forward Current (A)	0.1
Peak Non-Repetitive Surge Current (A)	0.5
Peak Forward Voltage (V)	0.46@0.01A
Peak Reverse Current (uA)	0.3@10V
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	2
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Length	0.67(Max)
Package Width	0.37(Max)
PCB changed	2
