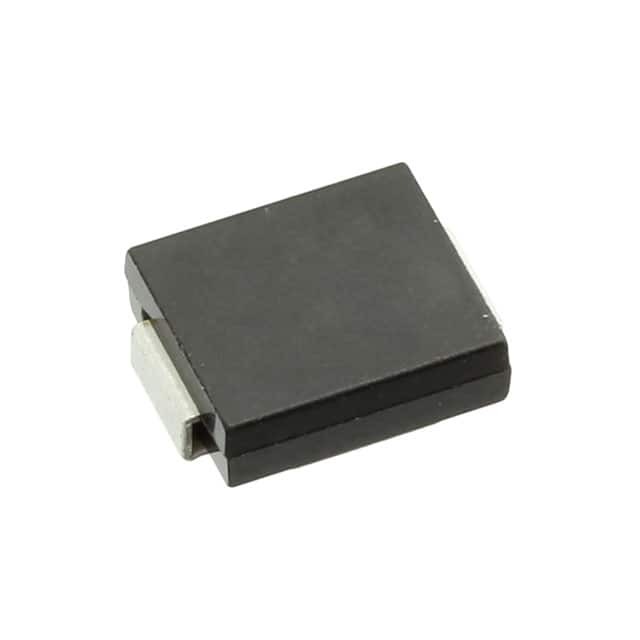

    ATV15C260JB-HF

    SKU: 129119
    Manufacturer: Comchip Technology
    TVS Diode Single Bi-Dir 26V 1.5KW Automotive 2-Pin SMC T/R
    3910 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.10.00.70
    Automotive Yes
    PPAP Unknown
    Configuration Single
    Direction Type Bi-Directional
    Number of Elements per pcs 1
    Minimum Breakdown Voltage (V) 28.9
    Maximum Clamping Voltage (V) 42.1
    Maximum Reverse Stand-Off Voltage (V) 26
    Maximum Forward Voltage (V) 3.5
    Peak Forward Surge Current (A) 200
    Maximum Peak Pulse Current (A) 35.63
    Maximum Reverse Leakage Current (uA) 1
    Test Current (mA) 1
    Peak Pulse Power Dissipation (W) 1500
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package SMC
    Pin Count 2
    Standard Package Method DO-214-AB
    Terminal Form Surface Mount
    Package Height 2.33(Max)
    Package Length 7.15(Max)
    Package Width 6.04(Max)
    PCB changed 2
