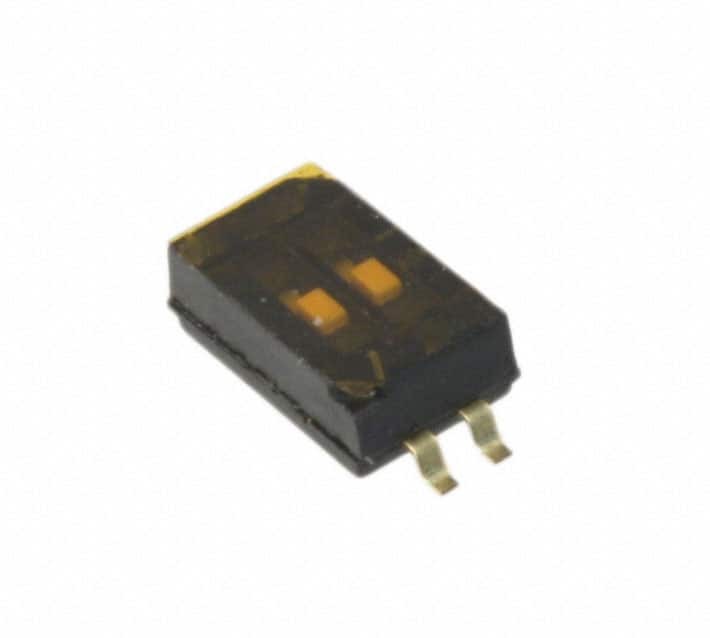

TDA02H0SB1

SKU: 50480

Manufacturer: C&K

Switch DIP OFF ON SPST 2 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Ultra-Miniature DIP Switch
Actuator Style	Recessed Slide
Pole Throw Configuration	SPST
Switch Configuration	OFF ON
Number of Positions	2
Current Rating-Max(A)	0.025@24VDC
Maximum Nonswitching Current (mA)	100
Maximum DC Voltage Rating (V)	24
Dielectric Strength	300VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	1000
Mechanical Life (Cycles)	1000
Actuator Length (mm)	0
Seal	Tape(Polyamide)/Process
Seal Location	Top/N/A
Seal Description	Tape(Polyamide)/Process
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Terminal Pitch (mm)	1.27
Number of Terminals	4
Total Pitch (mm)	1.27
Row Space (mm)	7.62
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Body Length (mm)	3.67
Body Depth (mm)	6.2
Body Height (mm)	2.2
Length (mm)	3.67
