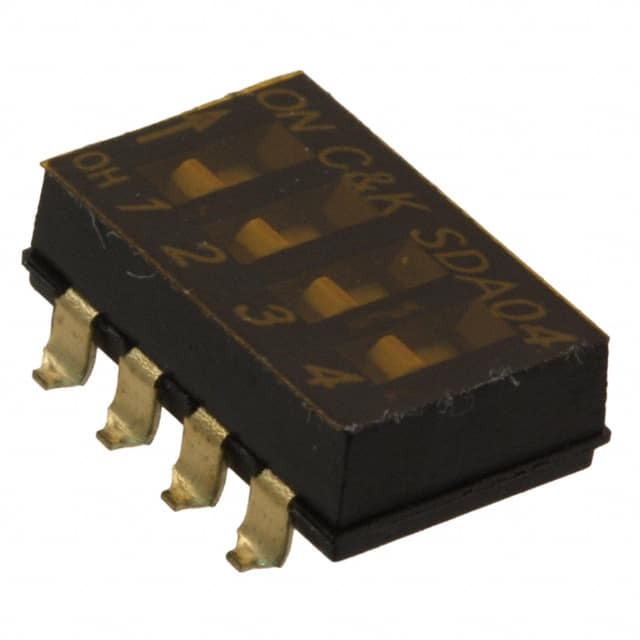

SDA04H0SB

SKU: 158366

Manufacturer: C&K

Switch DIP OFF ON SPST 4 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube

3220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Low Profile DIP Switch
Actuator Style	Flush Slide
Pole Throw Configuration	SPST
Switch Configuration	OFF ON
Number of Positions	4
Current Rating-Max(A)	0.1@5VDC
Maximum DC Voltage Rating (V)	24
Dielectric Strength	300VDC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	1000
Mechanical Life (Cycles)	1000
Actuator Length (mm)	0
Seal	Tape(Polyamide)
Seal Location	Top
Seal Description	Tape(Polyamide)
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Terminal Pitch (mm)	2.54
Number of Terminals	8
Total Pitch (mm)	7.62
Row Space (mm)	8.25
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Body Length (mm)	12.1
Body Depth (mm)	7.49
Body Height (mm)	3.5
Length (mm)	12.1
Depth (mm)	9.3
