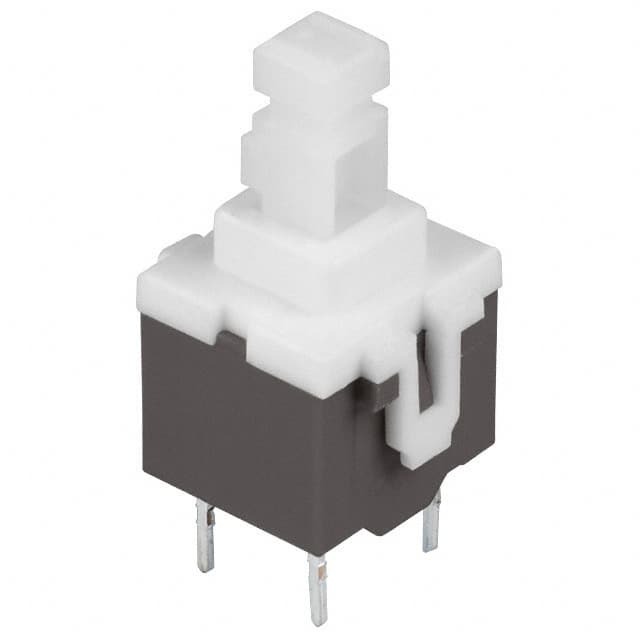

PVA1OAH11.2NV2

SKU: 59342

Manufacturer: C&K

Switch Key N.O./N.C. DPST 0.1A 32VDC 3VA 1.2N PC Pins Thru-Hole Automotive Bulk

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Short Stroke
Pole Throw Configuration	DPST
Actuator Style	Plunger
Switch Configuration	N.O./N.C.
Current Rating-Max(A)	0.1
Maximum DC Voltage Rating (V)	32
Maximum Power Rating (VA)	3
Dielectric Strength	1000VAC
Minimum Insulation Resistance (MOhm)	>=10000
Maximum Contact Resistance (mOhm)	<=100
Electrical Life (Cycles)	>=100000
Operating Force (N)	1.2
Bounce Time (ms)	<=3
Terminal Form	Through Hole
Terminal Form	PC Pins
Number of Terminals	4
Terminal Pitch (mm)	5
Body Orientation	Straight
Total Travel (mm)	2.4
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bulk
Row Spacing (mm)	6
Actuator Length (mm)	6.54
Body Length (mm)	9.8
Body Depth (mm)	9.2
Body Height (mm)	11
Length (mm)	9.8
Depth (mm)	9.2
