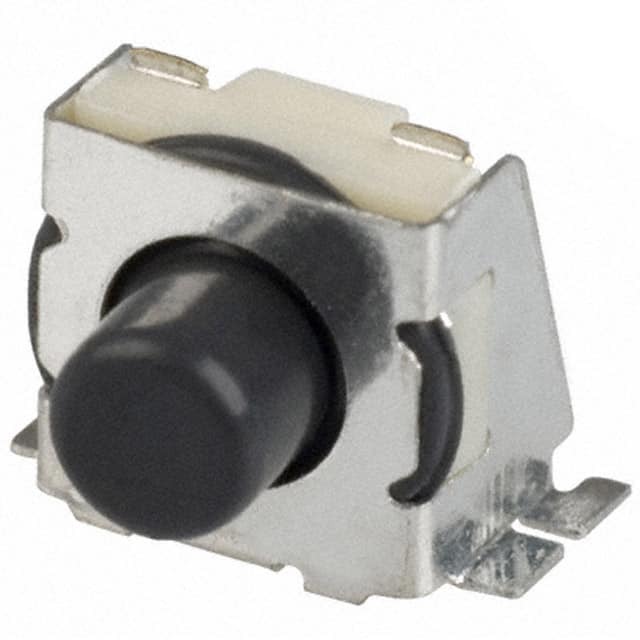

KT11B2SAM

SKU: 87026

Manufacturer: C&K

Switch Tactile OFF Mom SPST Round Button Gull Wing 50VAC 50VDC 1VA 100000Cycles SMD T/R

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Washable
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switching Function	Momentary
Switch Configuration	OFF Mom
Maximum Power Rating (VA)	1@50VAC 50VDC
Dielectric Strength	250Vrms
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	<50
Electrical Life (Cycles)	100000
Mechanical Life (Cycles)	100000
Actuator Length (mm)	2.24
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	2
Terminal Pitch (mm)	4.01
Seal Location	Actuator/Terminals
Seal Description	Silicone Rubber/Molded-In
IP Rating	IP57
Base Body Material	Liquid Crystal Polymer
Housing Body Material	Stainless Steel
Body Orientation	Right Angle
Operating Temperature-Min	-40
Operating Temperature-Max	90
Packing Method	Tape and Reel
Length (mm)	7.57
Depth (mm)	6.62
Height (mm)	6.6
Contact Plating	Silver
Contact Body Material	Stainless Steel
Base/Housing Body Material	(Liquid Crystal Polymer
