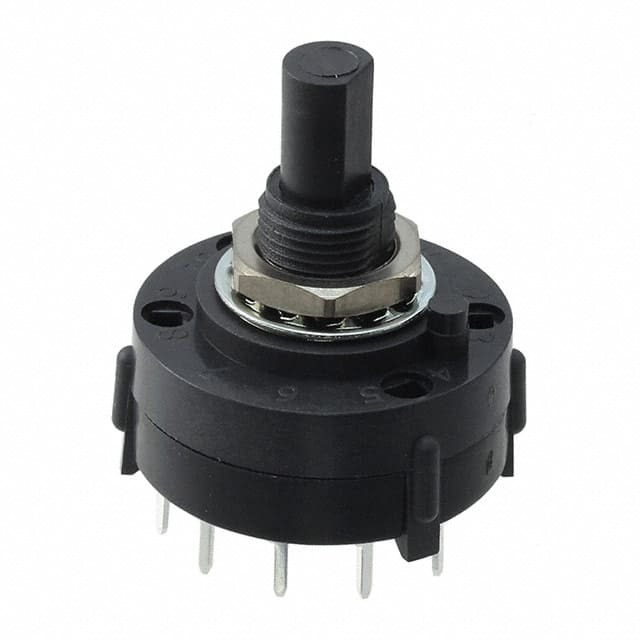

A11003RNCQ

SKU: 22795

Manufacturer: C&K

Switch Rotary N.O./N.C. SP10T 10 Flatted Shaft PC Pins 2.5A 125VAC 125VDC Automotive

3440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Switch Configuration	N.O./N.C.
Actuator Style	Flatted Shaft
Pole Throw Configuration	SP10T
Angle of Throw (°)	30
Number of Positions	10
Poles per Deck	1
Number of Decks	1
Current Rating-Max(A)	2.5@125VAC
Dielectric Strength	1000Vrms
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	<20
Electrical Life (Cycles)	300000
Maximum Operating Torque (N.m)	0.212
Actuator Diameter (mm)	6.35
Actuator Length (mm)	9.53
Contact Style	Non-Shorting
Stop Style	Fixed
Seal	No
Terminal Form	Panel Mount/Through Hole
Terminal Form	PC Pins
Terminal Length (mm)	3.89
Number of Terminals	13
Housing Body Material	Glass/Nylon 6/6
Body Orientation	Straight
Operating Temperature-Min	-30
Operating Temperature-Max	85
Thread Length (mm)	6.99
Body Length (mm)	26.19
Body Depth (mm)	26.19
Body Height (mm)	14.48
Length (mm)	26.19
Depth (mm)	26.19
