M24308/2-1F

SKU: 151022

Manufacturer: Cinch Connectivity Solutions

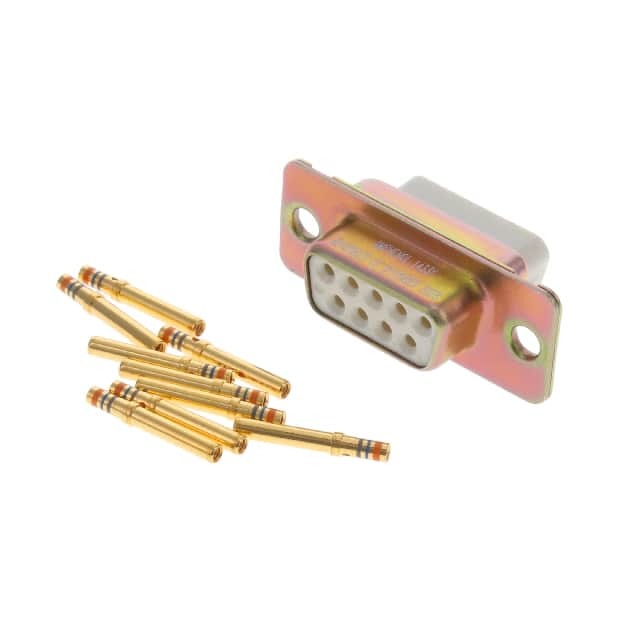

Conn D-Subminiature SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	RCP
Number of Contacts	9
Number of Terminals	9
Number of Ports	1
Number of Rows	2
Termination Method	Crimp
Body Orientation	Straight
Contact Gender	SKT
Current Rating-Max(A)	5
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	2.7
Operating Temperature-Min	-65
Operating Temperature-Max	125
Mating Cycle (Cycles)	1000
Shell Body Material	Steel
Shell Plating	Tin
Shell Size	E
Less Contact	No
Length (mm)	30.81
Depth (mm)	9.53
Height (mm)	12.55
Contact Plating	Gold Over Nickel
Contact Body Material	Phosphor Bronze
