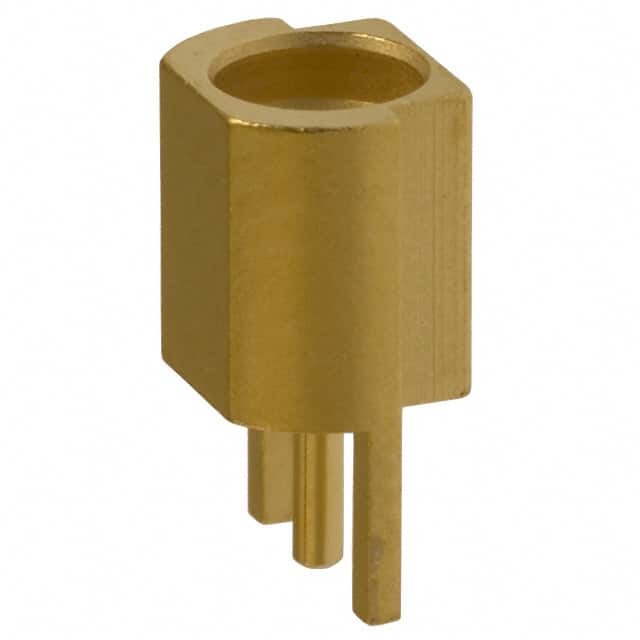

135-3711-801 Cinch Connectivity Solutions

135-3711-801

SKU: 15620

Manufacturer: Cinch Connectivity Solutions

Conn MMCX 0Hz to 6GHz 50Ohm Solder ST Edge Mount RCP Gold Over Nickel Stock

Download sample

Request Free Samples

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.10
Automotive	No
PPAP	No
Type	MMCX
Gender	RCP
Termination Method	Solder
Body Orientation	Straight
Contact Gender	F
Contact Plating	Gold
Operating Frequency (Hz)	0 to 6G
Maximum Insertion Loss (dB)	0.1
Voltage Rating-Max	170VAC
Impedance (Ohm)	50
Insulation Resistance (MOhm)	1000
Mating Cycle (Cycles)	500
Polarity	Standard
Operating Temperature-Min	-65
Operating Temperature-Max	165
Packing Method	Stock
Length (mm)	4.5
Depth (mm)	7.42
Height (mm)	3.53
