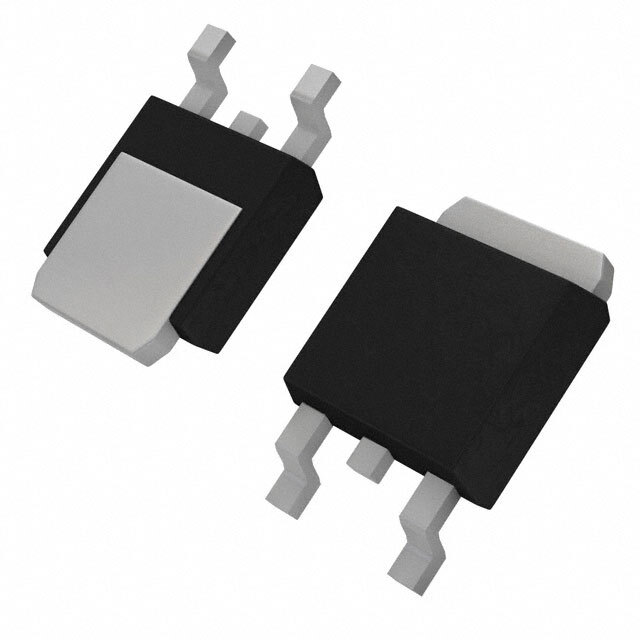

CSHD6-100C-TR13 Central Semiconductor

CSHD6-100C-TR13

SKU: 25446

Manufacturer: Central Semiconductor

Diode Schottky 100V 6A 3-Pin(2+Tab) DPAK T/R

Download sample

Request Free Samples

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Schottky Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	6
Peak Non-Repetitive Surge Current (A)	50
Peak Forward Voltage (V)	1.1
Peak Reverse Current (uA)	30
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.75(Max)
Package Length	6.81(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
