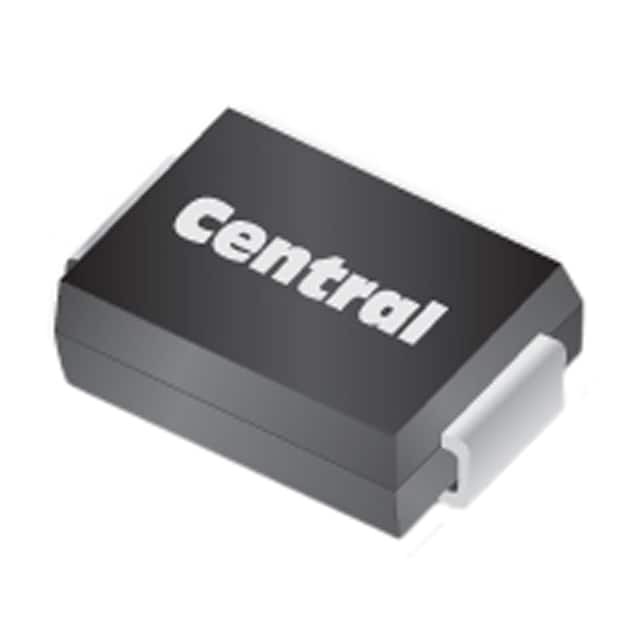

CMSH5-20

SKU: 11174

Manufacturer: Central Semiconductor

Rectifier Diode Schottky 20V 5A Automotive 2-Pin SMC

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Unknown
PPAP	Unknown
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	20
Configuration	Single
Peak Reverse Repetitive Voltage (V)	20
Maximum Continuous Forward Current (A)	5@Ta=70C
Peak Non-Repetitive Surge Current (A)	125
Peak Forward Voltage (V)	0.55
Peak Reverse Current (uA)	3000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	SMC
Pin Count	2
Standard Package Method	DO-214-AB
Terminal Form	Surface Mount
Package Height	2.42(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
