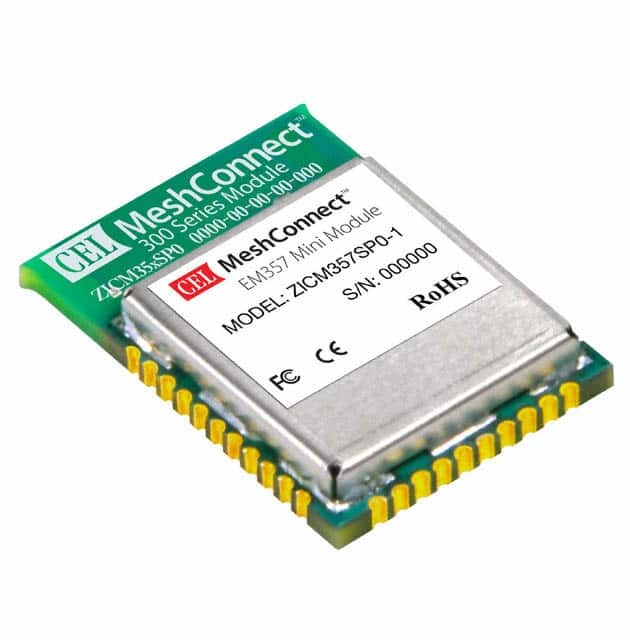

ZICM357SP0-1

SKU: 100371

Manufacturer: California Eastern Laboratories

802.15.4/ZigBee SOC 2480MHz 250Kbps 33-Pin SMD Module Tray

3560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8525.60.10.20
Automotive	No
PPAP	No
Module/IC Classification	Module
RAM Size (KB)	12
Flash Size (KB)	192
Number of Channels	16
Internal Antenna Type	PCB
Maximum Data Rate (Kbps)	250
Minimum Operating Frequency (MHz)	2405
Maximum Operating Frequency (MHz)	2480
Typical Sensitivity	-100dBm
Protocol Stack	802.15.4/ZigBee
Maximum Output Power	8dBm(Typ)
Operating Supply Voltage-Min (V)	2.1
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Processing Unit Type	Microcontroller
Antenna Terminal Form	On Board
Application	Smart Energy
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	SMD Module
Original Package	SMD Module
Pin Count	33
Terminal Form	Surface Mount
Package Height	3.86(Max)
Package Length	23.87
Package Width	16.63
