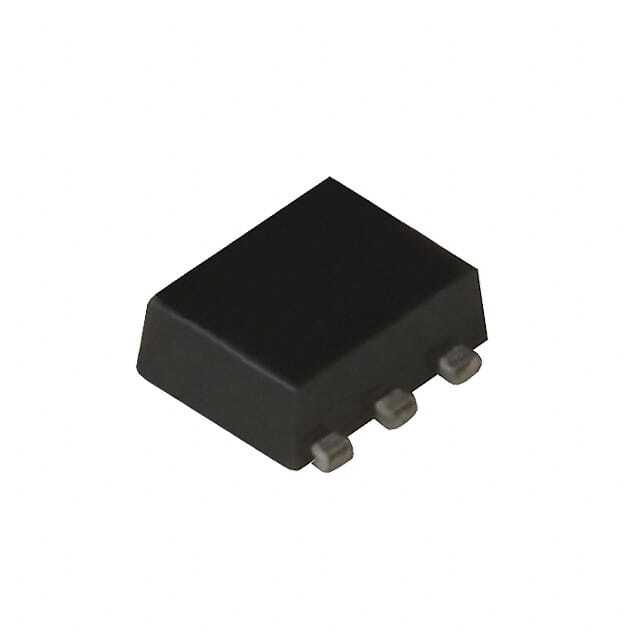

UPG2214TK-E2-A

SKU: 93102

Manufacturer: California Eastern Laboratories

RF Switch SPDT 500MHz to 3GHz 20dB 6-Pin LeadLess Mini-Mold T/R

9640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	200
Frequency Band (MHz)	500 to 3000
Maximum Frequency (MHz)	3000
Minimum Isolation Voltage (dB)	20
Maximum Insertion Loss (dB)	0.65
High Control Voltage (V)	1.8 to 5.3
Operating Temperature-Min	-45
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LeadLess Mini-Mold
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.55
Package Length	1.5
Package Width	1.1
