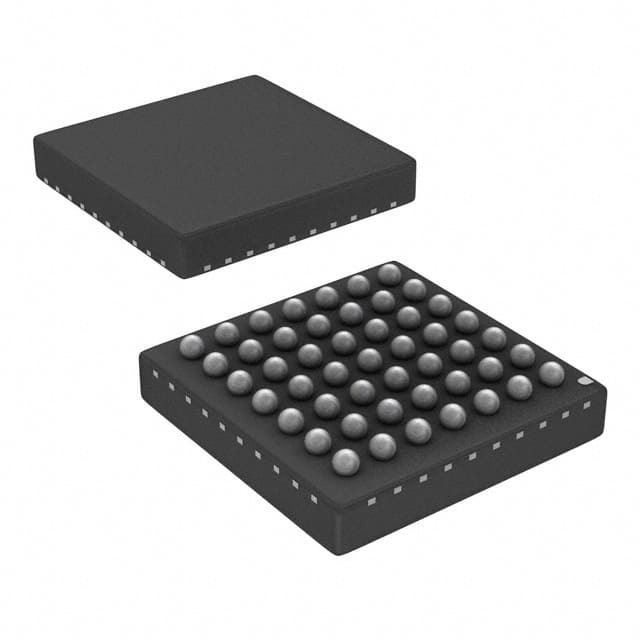

THC63LVDM87

SKU: 57545

Manufacturer: California Eastern Laboratories

LVDS Transmitter 1120Mbps 0.45V 49-Pin VFBGA

5070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Transmitter
Number of Drivers	4
Number of Receivers	28
Transmission Data Rate (Mbps)	1120
Minimum Operating Frequency (MHz)	8
Maximum Operating Frequency (MHz)	160
Input Signal Type	CMOS
Operating Supply Voltage-Min (V)	1.62
Operating Supply Voltage-Max (V)	3.6
Maximum Differential Output Voltage (V)	0.45
Typical Operating Supply Voltage (V)	1.8
Maximum Input Current (uA)	10
Maximum Power Dissipation (mW)	1300
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	VFBGA
Pin Count	49
Terminal Form	Surface Mount
Package Length	5
Package Width	5
