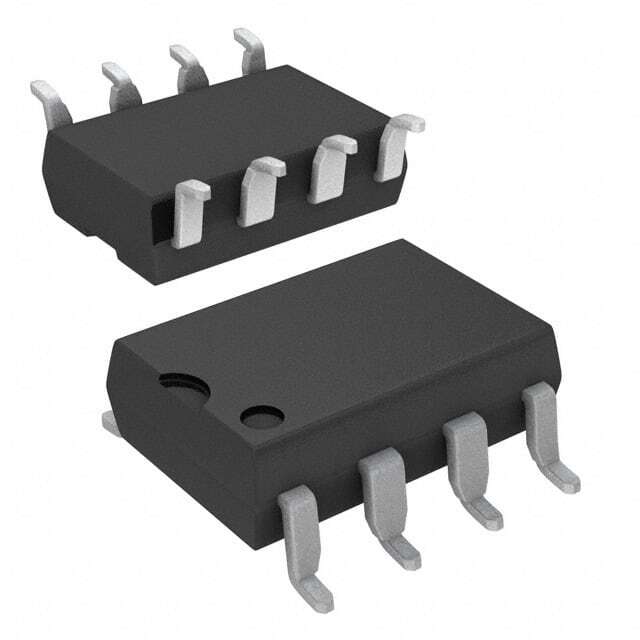

PS8501L2-E3-AX

SKU: 87390

Manufacturer: California Eastern Laboratories

DC-IN 1-CH Transistor With Base DC-OUT 8-Pin PDIP SMD T/R

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	2.2
Collector-Emitter Voltage-Max (V)	35
Standard	BSI
Maximum Collector Current (mA)	8
Maximum Power Dissipation (mW)	100
Typical Forward Voltage (V)	1.7
Maximum Reverse Voltage (V)	5
Maximum Forward Current (mA)	25
Packing Method	Tape and Reel
Minimum Current Transfer Ratio (%)	15
Current Transfer Ratio Test Current (mA)	16
Standard Package Method	DIP SMD
Pin Count	8
Original Package	PDIP SMD
Terminal Form	Surface Mount
Package Height	3.5
Package Length	9.25
Package Width	6.5
PCB changed	8
