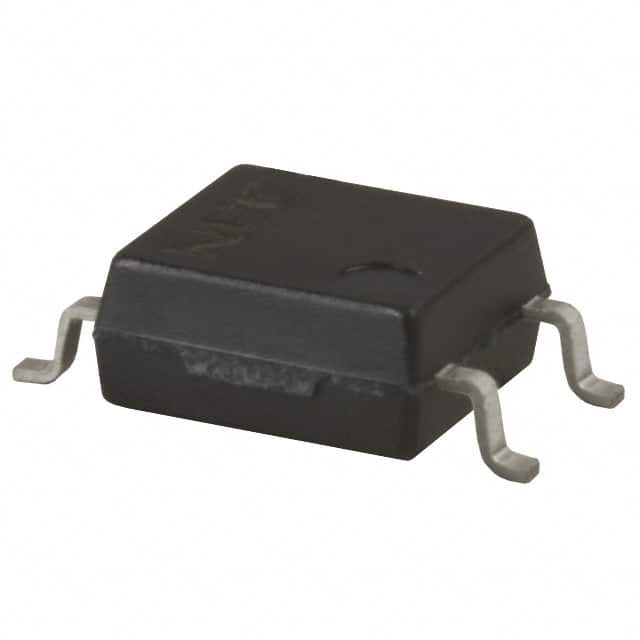

PS2702-1-A

SKU: 144076

Manufacturer: California Eastern Laboratories

DC-IN 1-CH Darlington DC-OUT 4-Pin SOP Magazine

2900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.29.00.95
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Darlington
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	3750
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	40
Maximum Current Transfer Ratio (%)	2000(Typ)
Standard	CSA
Maximum Collector Current (mA)	200
Maximum Collector-Emitter Saturation Voltage (mV)	1000
Maximum Power Dissipation (mW)	150
Maximum Reverse Voltage (V)	6
Typical Forward Voltage (V)	1.1
Maximum Forward Current (mA)	50
Packing Method	Magazine
Minimum Current Transfer Ratio (%)	200
Current Transfer Ratio Test Current (mA)	1
Typical Rise Time (us)	200
Typical Fall Time (us)	200
Standard Package Method	SOP
Pin Count	4
Original Package	SOP
Terminal Form	Surface Mount
Package Height	2
Package Length	4
Package Width	4.4
PCB changed	4
