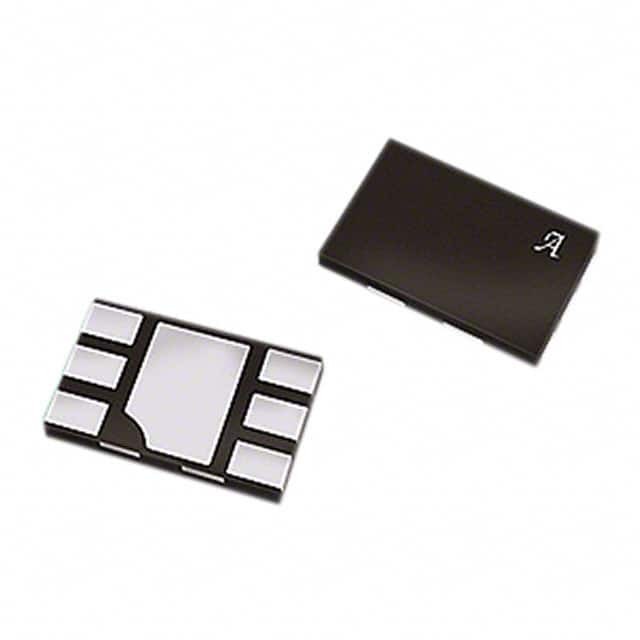

MGA-645T6-TR1G

SKU: 13484

Manufacturer: Broadcom Inc

RF Amp Single LNA 3GHz 4V 6-Pin UTSLP T/R

117340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	3000
Typical Power Gain (dB)	15@2400MHz
Typical Output Power (dBm)	9@2400MHz
Maximum Reverse Isolation (dB)	27(Typ)@2400MHz
Maximum Input Return Loss (dB)	9(Typ)@2400MHz
Maximum Output Return Loss (dB)	15(Typ)@2400MHz
Typical Noise Figure (dB)	1.1@2400MHz
Operating Supply Voltage-Max (V)	4
Maximum Single Supply Voltage (V)	4
Power Supply Type	Single
Maximum Power Dissipation (mW)	80
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	UTSLP
Pin Count	6
Standard Package Method	UTSLP
Terminal Form	Surface Mount
Package Height	0.4
Package Length	1.3
Package Width	2
