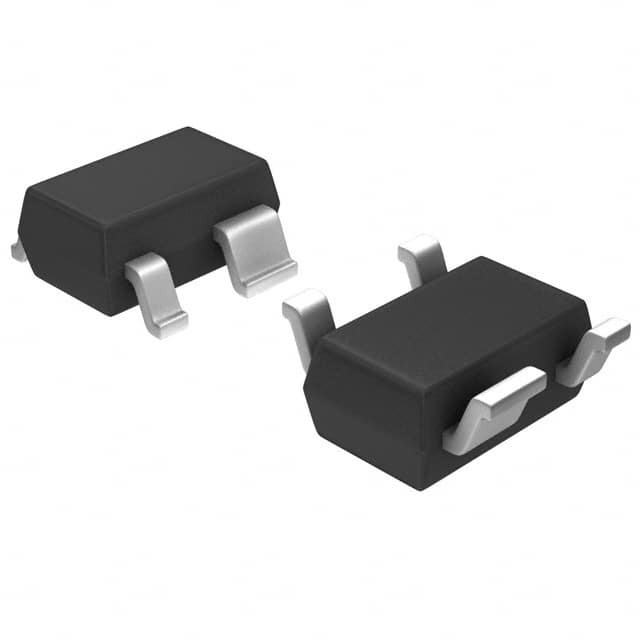

MGA-53543-TR1G

SKU: 63110

Manufacturer: Broadcom Inc

RF Amp Single Linear Amp 6GHz 5.5V 4-Pin SOT-343 T/R

5770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.g
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Linear Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	6000
Typical Power Gain (dB)	15.1@2400MHz
Typical Output Power (dBm)	18.3@2400MHz
Typical Output Intercept Point (dBm)	38.7@2400MHz
Maximum Reverse Isolation (dB)	23.4(Typ)@1900MHz
Maximum Input Return Loss (dB)	12.7(Typ)@2400MHz
Maximum Output Return Loss (dB)	25.1(Typ)@2400MHz
Typical Noise Figure (dB)	1.9@2400MHz
Operating Supply Voltage-Max (V)	5.5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	70@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	400
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-343
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.25(Max)
Package Width	1.35(Max)
PCB changed	4
