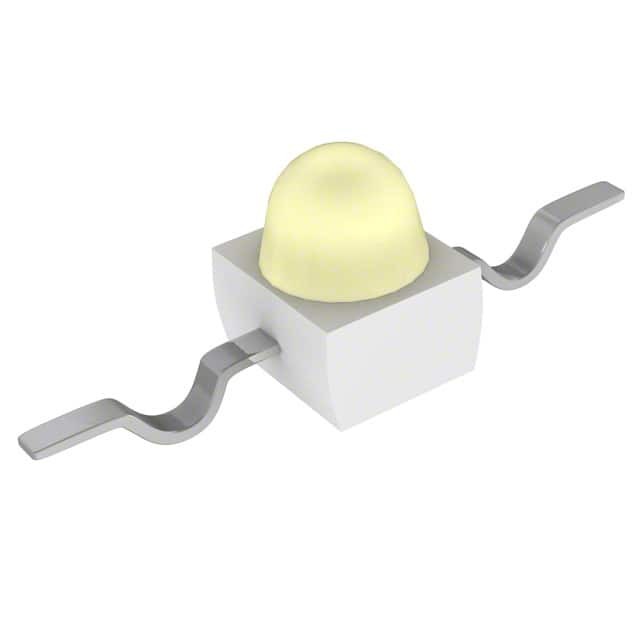

HLMP-6400-F0021 Broadcom Inc

HLMP-6400-F0021

SKU: 157849

Manufacturer: Broadcom Inc

LED Uni-Color Yellow 583nm 2-Pin T/R

Request Free Samples

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Number of LEDs	1
Lens Shape Type	Circular
Lens Appearance	Diffused
Mounting Orientation	Top Mount
Intensity	9mcd
Dominant Wavelength (nm)	585
Peak Wavelength (nm)	583
Maximum Forward Current (mA)	20
Test Current (mA)	10
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5(Max)
Internal Protection	No
Operating Temperature-Min	-55
Lead Standoff	No
Supplier Color	Yellow
Special Color	Yellow
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Pin Count	2
Terminal Form	Through Hole
Package Height	2.92(Max)
Package Length	2.34(Max)
Package Width	2.34(Max)
