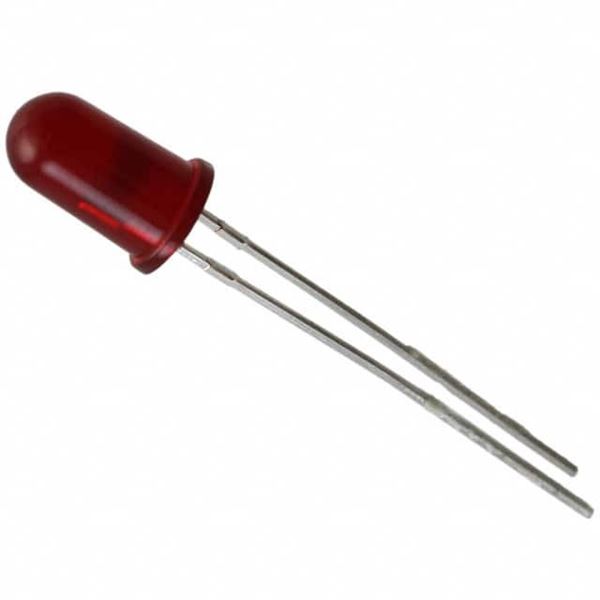

HLMP-3301-F0002

SKU: 44632

Manufacturer: Broadcom Inc

LED Uni-Color Hi-Eff. Red 635nm 2-Pin T-1 3/4 T/R

4220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Standard LED
Color
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Circular
Lens Dimensions (mm)	5.08x5.08x8.3
Lens Appearance	Colored Diffused
Mounting Orientation	Top Mount
Intensity	5.4mcd(Min)
Dominant Wavelength (nm)	626
Peak Wavelength (nm)	635
Viewing Angle (°)	60
Maximum Forward Current (mA)	25
Test Current (mA)	10
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5(Max)
Typical Forward Voltage (V)	1.9
Maximum Junction Temperature (°C)	110
Internal Protection	No
Maximum Power Dissipation (mW)	85
Operating Temperature-Min	-40
Operating Temperature-Max	100
Lead Standoff	No
Capacitance Value (pF)	11
Supplier Color	Hi-Eff. Red
Special Color	Hi-Eff. Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	T-1 3/4
Pin Count	2
Standard Package Method	T-1 3/4
Diameter	6.1(Max)
Terminal Form	Through Hole
Package Height	9.19(Max)
PCB changed	2
