HLMP-1421

SKU: 72821

Manufacturer: Broadcom Inc

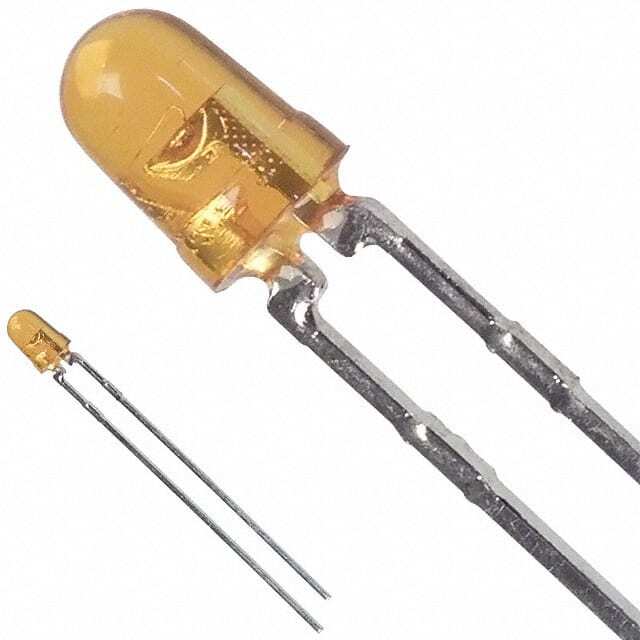

LED Uni-Color Yellow 583nm 2-Pin T-1

1890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Type	Uni-Color
Product Category	Standard LED
Color	Yellow
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Circular
Lens Dimensions (mm)	3.18x3.18x3.68
Lens Appearance	Colored Non Diffused
Mounting Orientation	Top Mount
Intensity	15mcd
Dominant Wavelength (nm)	585
Peak Wavelength (nm)	583
Viewing Angle (°)	45
Maximum Forward Current (mA)	20
Test Current (mA)	10
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5(Max)
Typical Forward Voltage (V)	2
Maximum Junction Temperature (°C)	110
Internal Protection	No
Maximum Power Dissipation (mW)	85
Operating Temperature-Min	-40
Operating Temperature-Max	100
Lead Standoff	Yes
Capacitance Value (pF)	15
Supplier Color	Yellow
Special Color	Yellow
High Power	No
High Brightness	No
Original Package	T-1
Pin Count	2
Standard Package Method	T-1
Diameter	3.43(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
PCB changed	2
