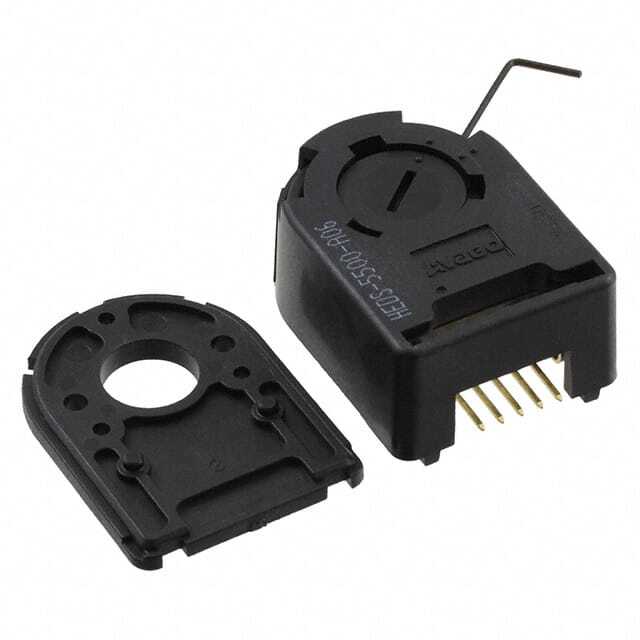

HEDS-5500#A06

SKU: 44626

Manufacturer: Broadcom Inc

Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 500CPR

2250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8543.70.99.60
Automotive	No
PPAP	No
Type	Quick Assembly Optical Encoder
Number of Channels	2
Motion	Rotary
Shaft Style	Round with Slot
Pulses per Revolution	2000
Terminal Type	PC Pin
Maximum Operating Speed	30000r/min
Programmability	No
Maximum Angular Acceleration	250000rad/s²
Encoder Signal	Digital
Operating Supply Voltage-Min	4.5VDC
Typical Operating Supply Voltage	5VDC
Operating Supply Voltage-Max	5.5VDC
Operating Temperature-Min	-40
Operating Temperature-Max	100
Encoder Code	Quadrature
Encoder Reading	Incremental
Rotor Inertia	0.6g.cm²
Terminal Form	Through Hole
Body Orientation	Straight
Shaft Diameter (mm)	6.35
Length (mm)	30
Depth (mm)	18.3
