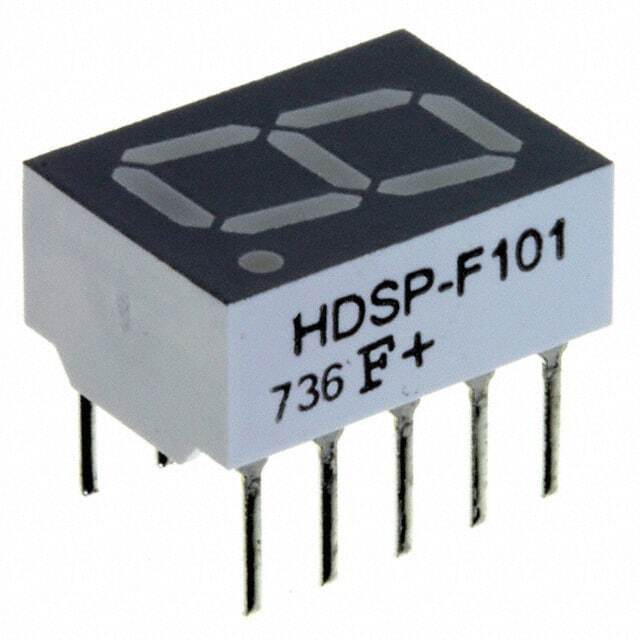

HDSP-F101

SKU: 150731

Manufacturer: Broadcom Inc

Display Segmented Module 1DIGIT 8LED Red CA 10-Pin DIP Module

2730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8531.20.00.20
Type	Module
Number of Digits	1
Color
Number of LEDs	8
Digit Size (in)	0.4
Character Displayed	Numeric
Intensity (ucd)	3900
Dominant Wavelength (nm)	637
Peak Wavelength (nm)	645
Configuration	Common Anode
Maximum Forward Current (mA)	15
Test Current (mA)	10
Maximum Reverse Voltage (V)	15(Typ)
Maximum Forward Voltage (V)	2.2
Maximum Power Dissipation (mW)	37
Typical Forward Voltage (V)	1.8
Internal Protection	No
Operating Temperature-Min	-20
Operating Temperature-Max	100
Original Package	DIP Module
Pin Count	10
Standard Package Method	DIM
Terminal Form	Through Hole
Package Height	6.36(Max)
Package Length	12.9
Package Width	9.79(Max)
