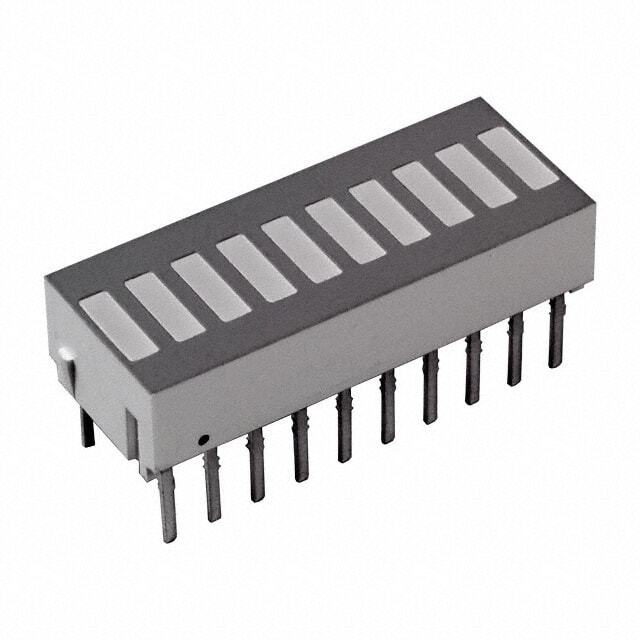

HDSP-4832

SKU: 44625

Manufacturer: Broadcom Inc

LED Light Bar Uni-Color 3Green/3Red/4Yellow 566nm/635nm/583nm 20-Pin

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8531.20.00.20
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	3Green/3Red/4Yellow
Number of LEDs	10
LED Body Material	GaP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	5.08x1.52x5.08
Mounting Orientation	Top Mount
Intensity	1.9mcd
Dominant Wavelength (nm)	571/626/585
Peak Wavelength (nm)	566/635/583
Maximum Forward Current (mA)	30/30/20
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	3
Maximum Power Dissipation (mW)	105/87/50
Operating Temperature-Min	-20
Operating Temperature-Max	100
Supplier Color	3Green/3Hi-Eff. Red/4Yellow
High Brightness	No
Pin Count	20
Terminal Form	Through Hole
Package Height	5.08
Package Length	25.4(Max)
Package Width	10.16(Max)
PCB changed	20
