HCPL-5600

SKU: 75512

Manufacturer: Broadcom Inc

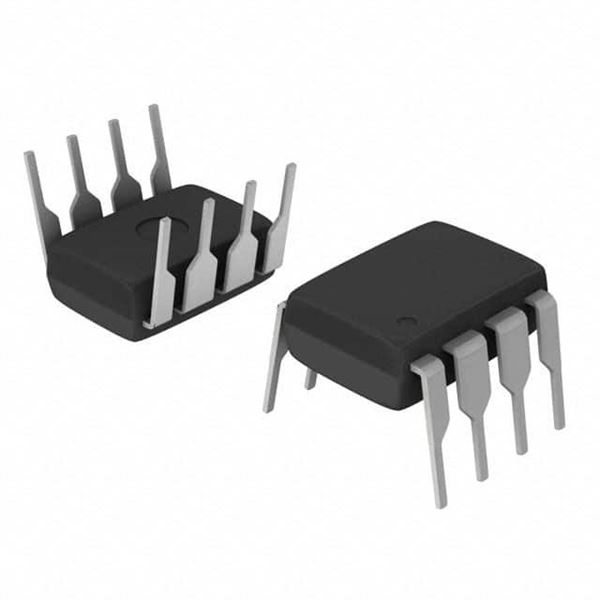

Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin CDIP

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	RoHS Not Applicable
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Logic Gate Type	NAND
Number of Channels per Chip	1
Maximum Data Rate	10Mbps
Polarity	Inverting
Direction Type	Uni-Directional
Maximum Rise Time (us)	0.09
Typical Rise Time (us)	0.035
Maximum Fall Time (us)	0.04
Typical Fall Time (us)	0.035
Maximum Propagation Delay Time (ns)	140
Input Type	DC
Output Type	Open Collector
Maximum Forward Current (mA)	20
Maximum Continuous Output Current (mA)	25
Current Transfer Ratio Test Current (mA)	10
Minimum Current Transfer Ratio (%)	100
Typical Forward Voltage (V)	1.5
Maximum Forward Voltage (V)	1.9
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	200/ch
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Standard Package Method	DIP
Original Package	CDIP
Pin Count	8
Terminal Form	Through Hole
Package Height	4.32(Max) - 0.51(Min)
Package Length	9.91(Max)
Package Width	7.57(Max)
PCB changed	8
