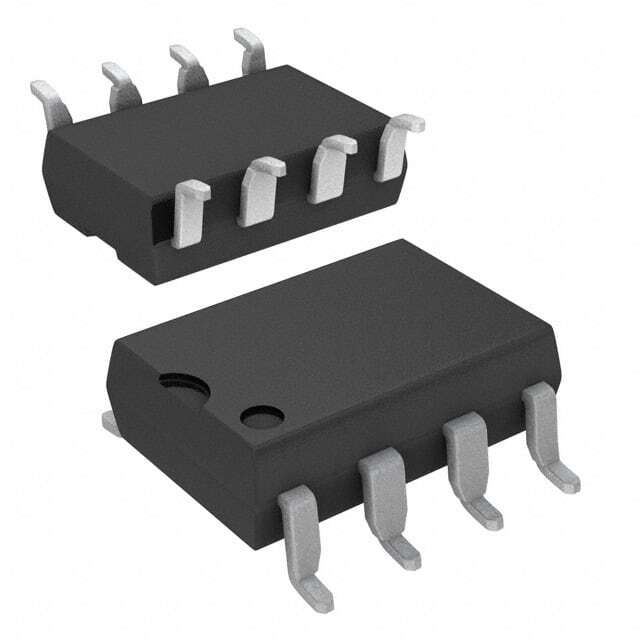

HCNR201-500E

SKU: 18975

Manufacturer: Broadcom Inc

Optocoupler DC-IN 1-CH Linear Photovoltaic DC-OUT 8-Pin PDIP W SMD T/R

63170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Linear Photovoltaic
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Maximum Forward Voltage (V)	1.95
Standard	CSA
Maximum Power Dissipation (mW)	60
Minimum Forward Voltage (V)	1.2
Typical Forward Voltage (V)	1.6
Maximum Reverse Voltage (V)	2.5
Maximum Forward Current (mA)	25
Packing Method	Tape and Reel
Maximum Data Rate	1.5MHz(Typ)
Standard Package Method	DIP SMD
Pin Count	8
Original Package	PDIP W SMD
Terminal Form	Surface Mount
Package Height	4(Max)
Package Length	11.15
Package Width	9
