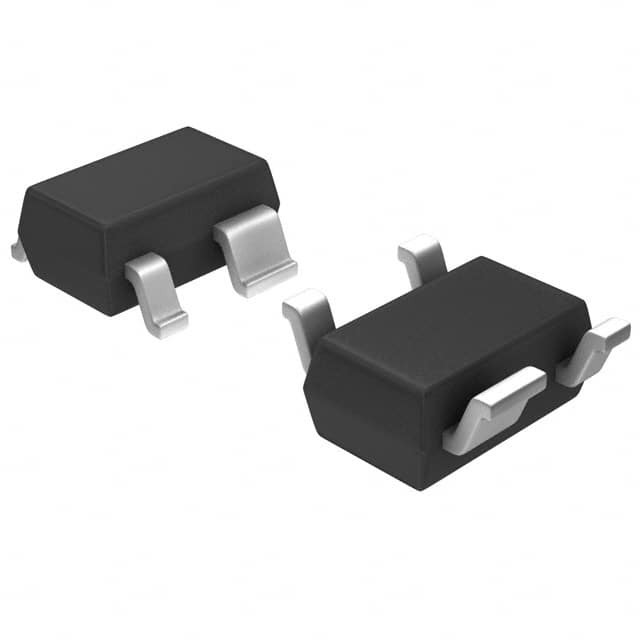

ATF-54143-TR1G

SKU: 116922

Manufacturer: Broadcom Inc

Trans RF FET 5V 0.12A 4-Pin SOT-343 T/R

7700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
Automotive	No
PPAP	No
Configuration	Single Dual Source
Type	JFET
Channel Mode	Enhancement
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	5
Maximum Gate Source Voltage (V)	1
Maximum Gate Threshold Voltage (V)	0.52
Maximum Continuous Drain Current (A)	0.12
Maximum Gate Source Leakage Current (nA)	200000
Maximum IDSS (uA)	5
Typical Forward Transconductance (S)	0.41
Maximum Power Dissipation (mW)	725
Maximum Frequency (MHz)	6000
Minimum Frequency (MHz)	450
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-343
Pin Count	4
Standard Package Method	SOT-343
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.25(Max)
Package Width	1.35(Max)
PCB changed	4
