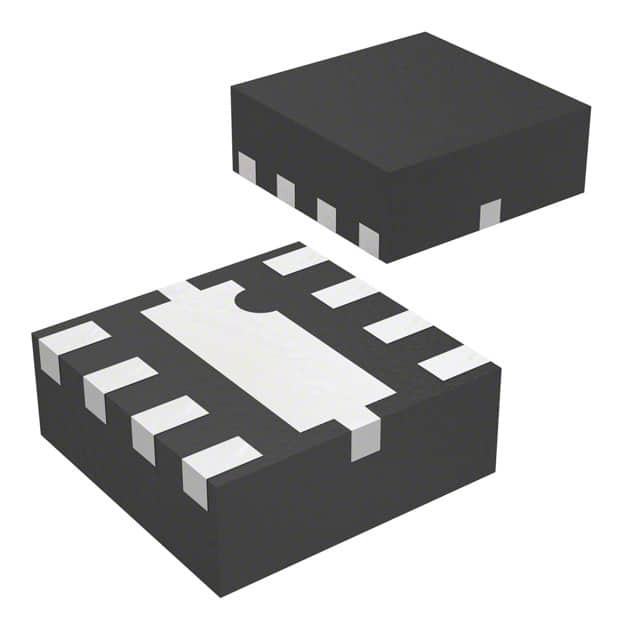

ATF-501P8-BLK

SKU: 74514

Manufacturer: Broadcom Inc

Trans RF FET 7V 1A 8-Pin LPCC Bag

4230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Configuration	Single Dual Source
Type	JFET
Maximum Drain Source Voltage (V)	7
Maximum Gate Source Voltage (V)	0.8
Maximum Continuous Drain Current (A)	1
Maximum Power Dissipation (mW)	3500
Typical Power Gain (dB)	16.6
Maximum Frequency (MHz)	3900
Minimum Frequency (MHz)	400
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Bag
Original Package	LPCC
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	2
Package Width	2
PCB changed	8
