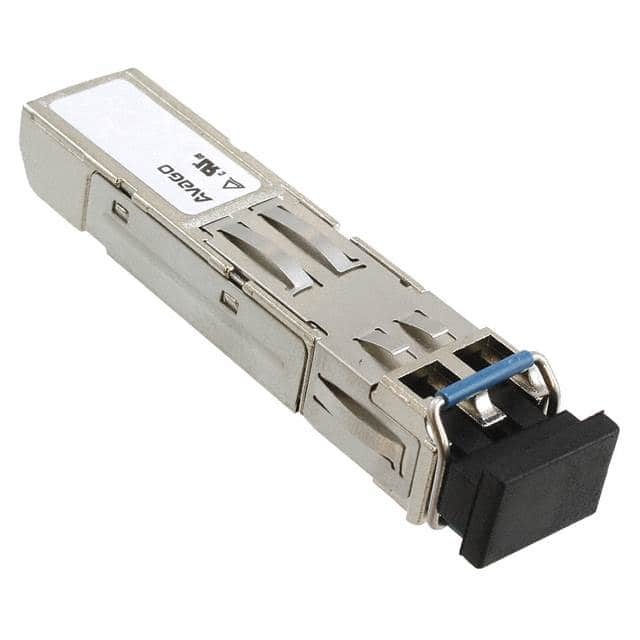

AFCT-5715APZ

SKU: 30058

Manufacturer: Broadcom Inc

TX/RX Optical Fiber 1250MBd 20-Pin

2730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	TX/RX
Emitter Type	Laser
Fiber Mode	Single Mode
Connector Type	LC
Maximum Data Rate	1.25GBd
Peak Wavelength (nm)	1355(Max)
Form Factor	SFP
Rise Time (ns)	0.26
Maximum Fall Time (ns)	0.26
Jitter (ns)	0.227(Max)
Average Optical Output Power (dBm)	-9.5(Min)
Operating Supply Voltage-Min (V)	3.14
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.47
Maximum Power Dissipation (mW)	830
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Pin Count	20
Terminal Form	Through Hole
Package Height	13
Package Length	57.8
Package Width	13.8
