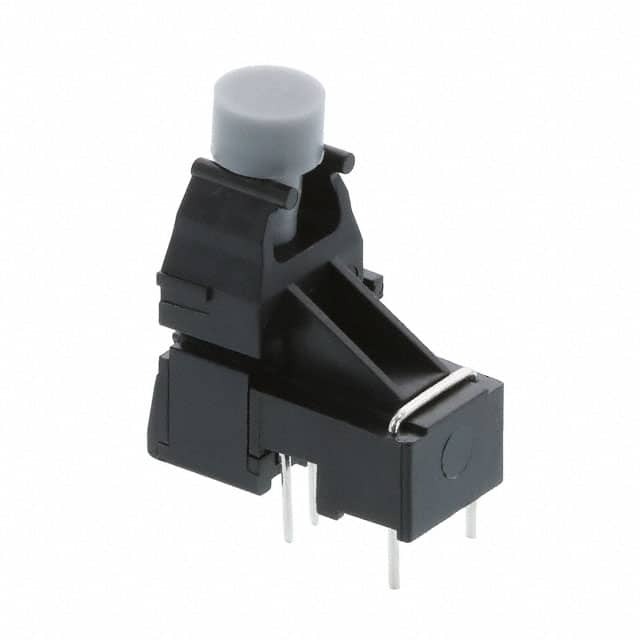

AFBR-2539Z

SKU: 129058

Manufacturer: Broadcom Inc

RX Optical Fiber 50MBd 6-Pin

3770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b.1
Part Status	Active
HTS	8517.62.00.90
Automotive	No
PPAP	No
Type	RX
Emitter Type	LED
Maximum Data Rate	50MBd
Peak Wavelength (nm)	650
Rise Time (ns)	5
Maximum Fall Time (ns)	5
Maximum Output Current (mA)	10
Operating Supply Voltage-Min (V)	3.135
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.465
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	6
Terminal Form	Through Hole
Package Height	18.8
Package Length	18.29
Package Width	12.19
