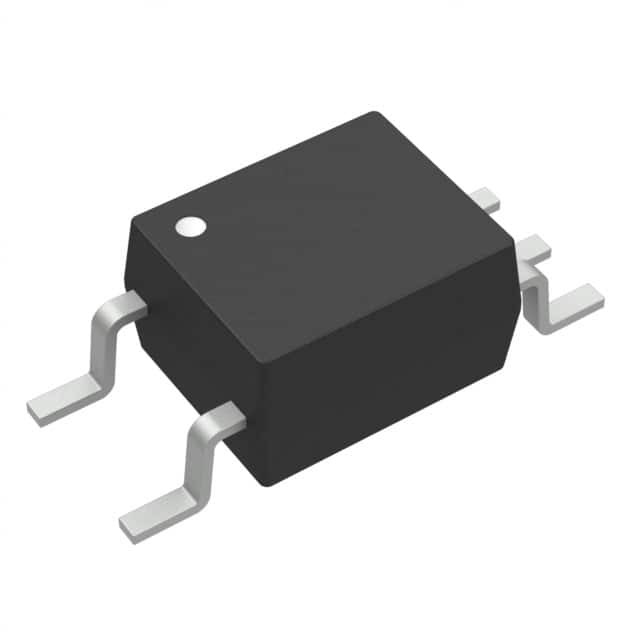

ACPL-M61T-500E

SKU: 130672

Manufacturer: Broadcom Inc

Optocoupler Logic-Out Open Collector DC-IN 1-CH Automotive 5-Pin SOIC T/R

39660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	Yes
PPAP	Unknown
Logic Gate Type	Inverter
Number of Channels per Chip	1
Maximum Data Rate	10MBd(Typ)
Polarity	Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	4000
Typical Rise Time (us)	0.024
Typical Fall Time (us)	0.01
Maximum Propagation Delay Time (ns)	75
Standard	CSA
Input Type	DC
Output Type	Open Collector
Maximum Forward Current (mA)	20
Maximum Continuous Output Current (mA)	50
Minimum Forward Voltage (V)	1.45
Typical Forward Voltage (V)	1.5
Maximum Forward Voltage (V)	1.75
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	85
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Standard Package Method	SOP
Original Package	SOIC
Pin Count	5
Terminal Form	Surface Mount
Package Height	2.5
Package Length	3.6
Package Width	4.4
PCB changed	5
