ACPL-M46T-000E

SKU: 67000

Manufacturer: Broadcom Inc

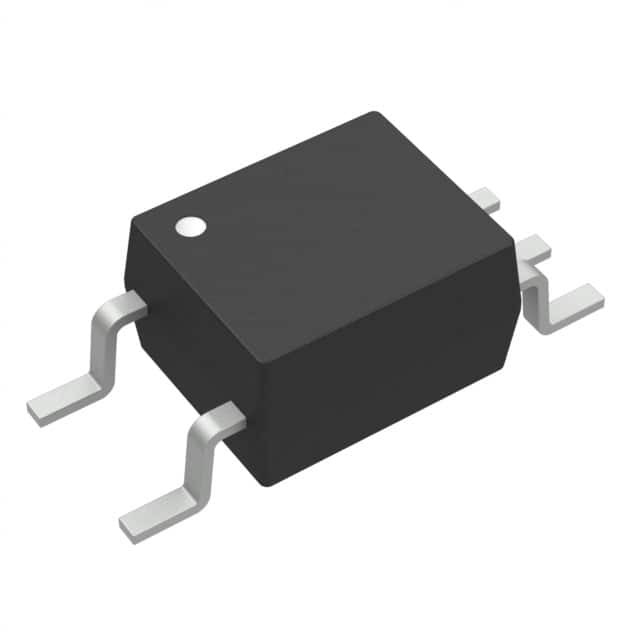

Optocoupler Logic-Out Open Collector DC-IN 1-CH Automotive 5-Pin SOIC Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	Yes
PPAP	Unknown
Number of Channels per Chip	1
Polarity	Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	4000
Maximum Propagation Delay Time (ns)	550
Standard	CSA
Input Type	DC
Output Type	Open Collector
Maximum Forward Current (mA)	20
Maximum Continuous Output Current (mA)	15
Current Transfer Ratio Test Current (mA)	10
Minimum Current Transfer Ratio (%)	44
Maximum Current Transfer Ratio (%)	90(Typ)
Typical Forward Voltage (V)	1.5
Maximum Forward Voltage (V)	1.8
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	130
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Standard Package Method	SOP
Original Package	SOIC
Pin Count	5
Terminal Form	Surface Mount
Package Height	2.5
Package Length	3.6
Package Width	4.4
PCB changed	5
