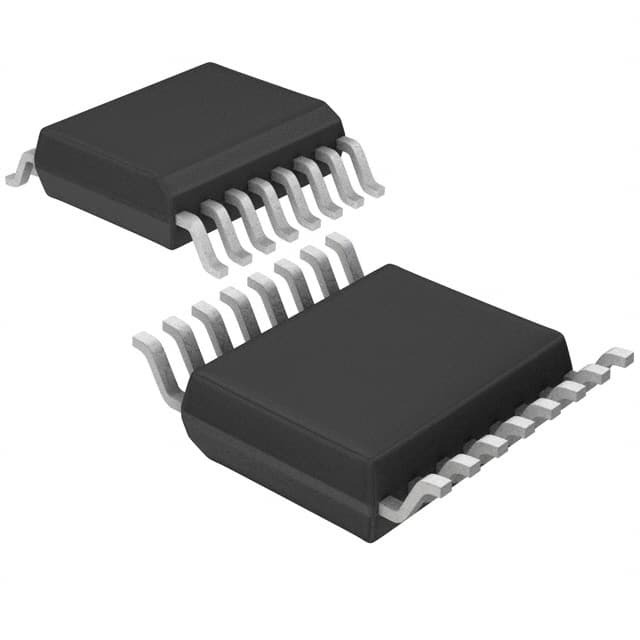

ACPL-302J-000E

SKU: 60054

Manufacturer: Broadcom Inc

Optocoupler Drive 18V 1500V 16-Pin SO Tube

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Minimum Isolation Voltage (Vrms)	5000
Minimum Common Mode Rejection (kV/us)	30
Maximum Rise Time (ns)	70
Maximum Fall Time (ns)	35
Maximum Propagation Delay Time (tPLH) (ns)	250
Maximum Propagation Delay Time (tPHL) (ns)	250
Maximum Pulse Width Distortion (ns)	140
Maximum Peak Output Current (A)	2.5
Minimum Forward Voltage (V)	1.25
Maximum Forward Voltage (V)	1.85
Maximum Reverse Voltage (V)	6
Common Mode Voltage (V)	1500
Operating Supply Voltage-Max (V)	18
Maximum Working Insulation Voltage (Vp)	1230
Maximum Power Dissipation (mW)	580
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tube
Standard Package Method	SOP
Original Package	SO
Pin Count	16
Terminal Form	Surface Mount
Package Height	3.51
Package Length	10.36
Package Width	7.49
PCB changed	16
