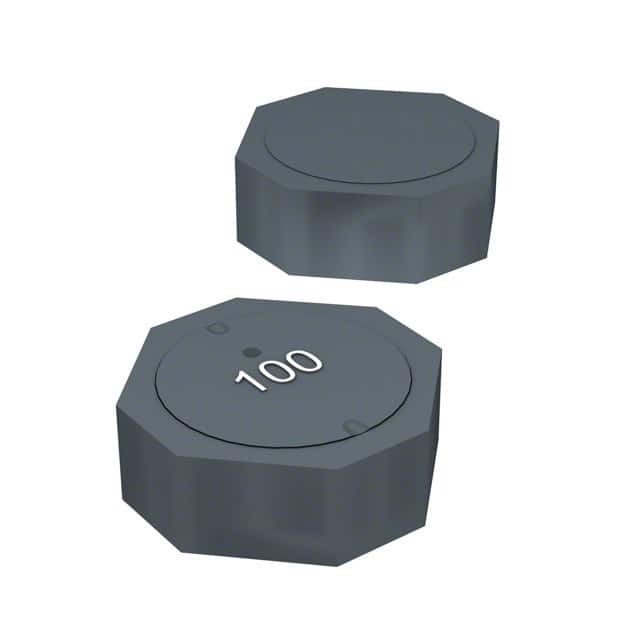

SRU8043-4R7Y

SKU: 156381

Manufacturer: Bourns

Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 13Q-Factor Ferrite 4.6A 0.017Ohm DCR 3131 T/R

3530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	4.7u
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	4.6
Maximum Saturation Current (A)	3.6(Typ)
Maximum DC Resistance (Ohm)	0.017
Minimum Quality Factor	13
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	36M
Number of Terminals	2
Case Size	3131
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	8.3
Terminal Form	Surface Mount
Depth (mm)	8.3
