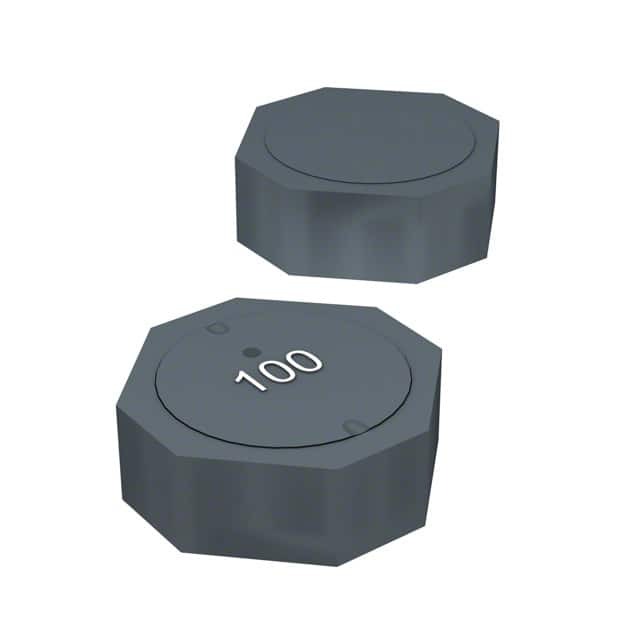

SRU8043-330Y

SKU: 92480

Manufacturer: Bourns

Inductor Power Shielded Wirewound 33uH 30% 100KHz 21Q-Factor Ferrite 1.7A 0.1Ohm DCR 3131 T/R

3240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	33u
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	1.7
Maximum Saturation Current (A)	1.4(Typ)
Maximum DC Resistance (Ohm)	0.1
Minimum Quality Factor	21
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	11M
Number of Terminals	2
Case Size	3131
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	8.3
Terminal Form	Surface Mount
Depth (mm)	8.3
