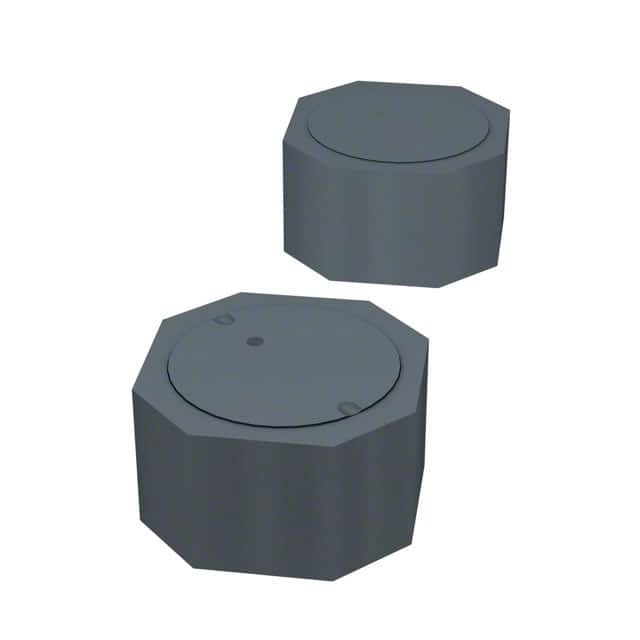

SRU5028-6R8Y

SKU: 50268

Manufacturer: Bourns

Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 2A 0.042Ohm DCR T/R

1340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	6.8u
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	2
Maximum Saturation Current (A)	1.55(Typ)
Maximum DC Resistance (Ohm)	0.042
Minimum Quality Factor	10
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	55M
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.4
Terminal Form	Surface Mount
Depth (mm)	5.4
