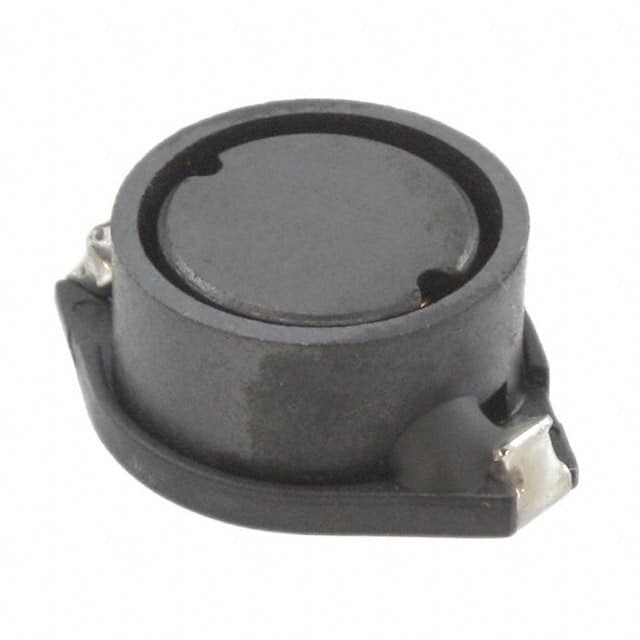

SRR1806-220M

SKU: 59498

Manufacturer: Bourns

Inductor Power Shielded Wirewound 22uH 20% 100KHz 51Q-Factor Ferrite 3A 0.053Ohm DCR T/R

3630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	22u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	3
Maximum Saturation Current (A)	6.2(Typ)
Maximum DC Resistance (Ohm)	0.053(Typ)
Minimum Quality Factor	51
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	16M(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	18.6
Terminal Form	Surface Mount
Depth (mm)	14.3
