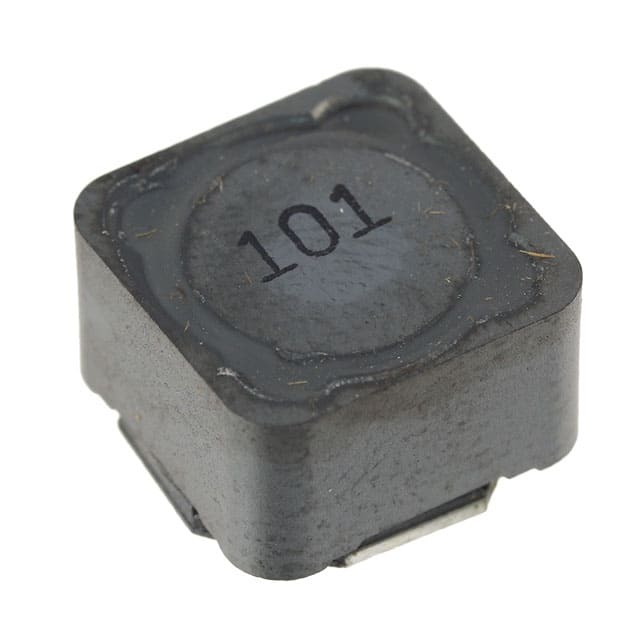

SRR1280-151K

SKU: 135033

Manufacturer: Bourns

Inductor Power Shielded Wirewound 150uH 10% 1KHz 24Q-Factor Ferrite 1.85A 0.27Ohm DCR T/R

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	150u
Inductance Decrease Percentage @ Isat (%)	25
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	1.85
Maximum Saturation Current (A)	1.9(Typ)
Maximum DC Resistance (Ohm)	0.27
Minimum Quality Factor	24(Typ)
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	4.1M(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	12.8
Terminal Form	Surface Mount
Depth (mm)	12.8
