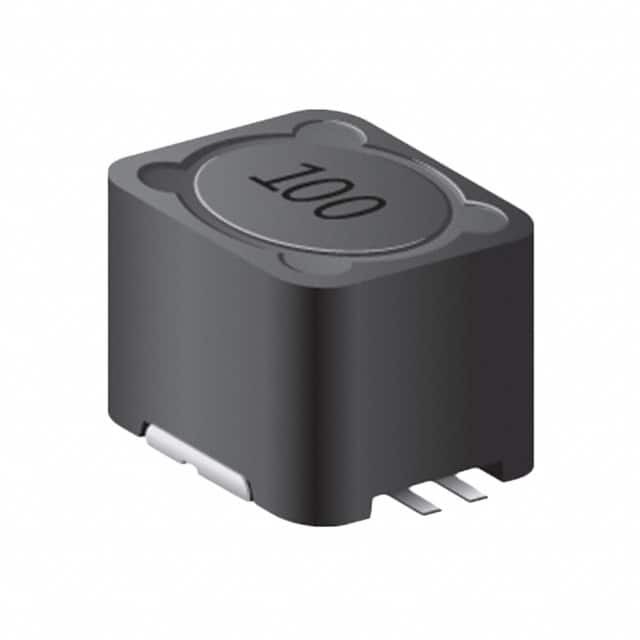

SRR1210A-8R2Y

SKU: 71361

Manufacturer: Bourns

Inductor Power Shielded Wirewound 8.2uH 30% 1KHz 11Q-Factor Ferrite 7.25A 0.017Ohm DCR Automotive T/R

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Yes
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	8.2u
Inductance Decrease Percentage @ Isat (%)	20
Tolerance	30%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	7.25(Typ)
Maximum Saturation Current (A)	7.55
Maximum DC Resistance (Ohm)	0.017
Minimum Quality Factor	11
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	16M(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	12.5
Terminal Form	Surface Mount
Depth (mm)	12.5
