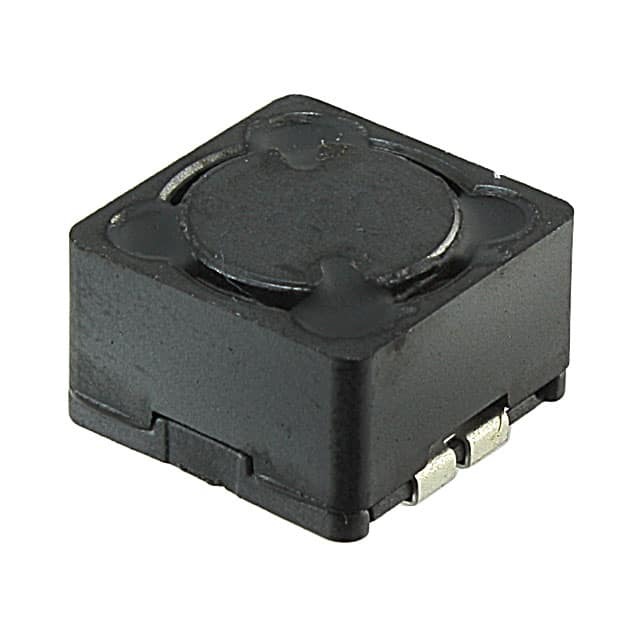

SRR1208-6R5ML

SKU: 92476

Manufacturer: Bourns

Inductor Power Shielded Wirewound 6.5uH 20% 1KHz 25Q-Factor Ferrite 6A 0.018Ohm DCR T/R

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	6.5u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	20%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	6
Maximum Saturation Current (A)	8.4(Typ)
Maximum DC Resistance (Ohm)	0.018
Minimum Quality Factor	25
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	20M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	13
Terminal Form	Surface Mount
Depth (mm)	13
