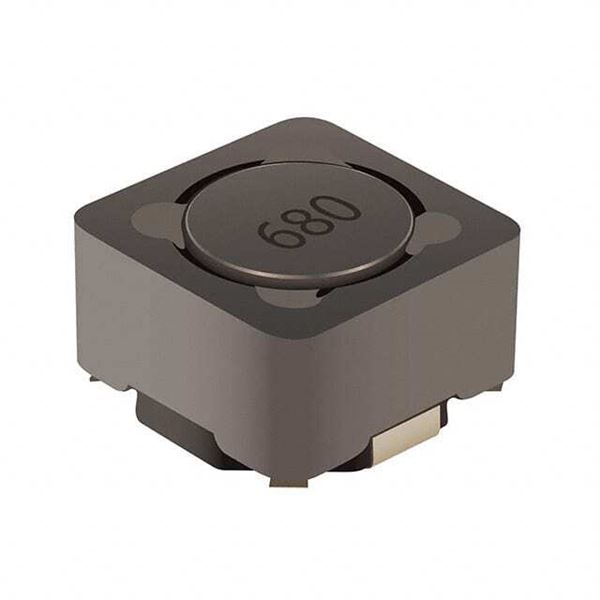

SRR0745A-680M

SKU: 14767

Manufacturer: Bourns

Inductor Power Shielded Wirewound 68uH 20% 1KHz Ferrite 0.86A 0.3Ohm DCR Automotive T/R

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Yes
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	68u
Tolerance	20%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.86(Typ)
Maximum Saturation Current (A)	0.96
Maximum DC Resistance (Ohm)	0.3
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.5
Terminal Form	Surface Mount
Depth (mm)	7.5
